Large-Scale Products

——

  • Phesky

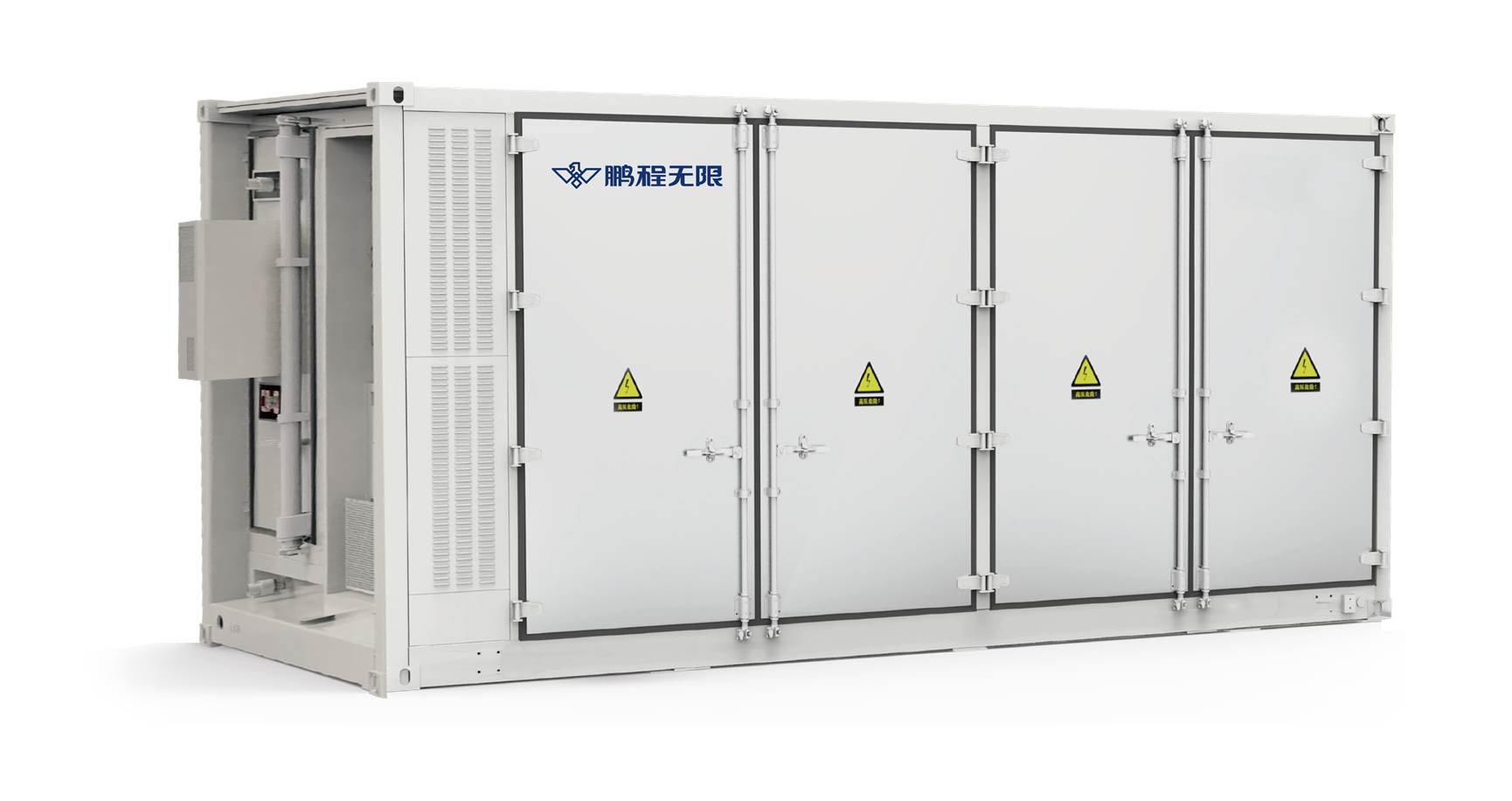

    Phesky 6.25MWh

    Liquid-cooled energy storage container

    |  Data sheet

    Basic Parameter
    Cell Capacity [Ah] 587
    Dimensions [L*W*H][mm] 6058*2438*2896
    Pack Type 1P104S*32
    Rated direct current voltage [V/dc] 1331.2
    Rated Capacity [MWh] 6.25
    Rated Charge/Discharge Rate [P] ≤0.5
    IP Level IP55
    Container Weight [t] ≤45

    |  Data sheet

    Basic Parameter
     Cell Capacity [Ah] 587

    Dimensions [L*H*W][mm]

    		 6058*2438*2896
    Pack Type 1P104S*32
    Rated direct current voltage [V/dc]  1331.2
    Rated Capacity [MWh] 6.25
    Rated output voltage [V/ac] 690
    IP Level IP55
    Container Weight [t] ≤47

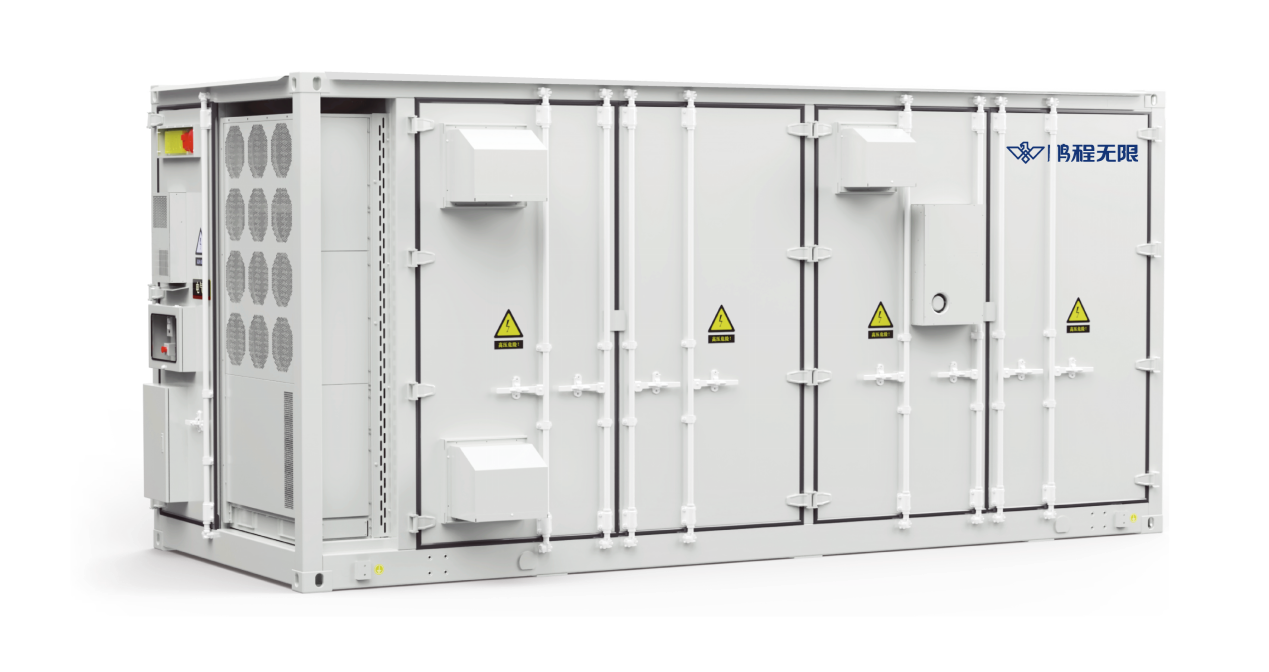

    Powerlink 6.25MWh

    Liquid-Cooled Energy Storage Container - AC/DC Integrated

    High Safety

    ● Heat insulation, heat absorption, and heat conduction technologies ensure thermal safety

    ● Operates normally in harsh environments, with a wide temperature range of -35 to 55 degrees Celsius, and is mechanically reliable for 20 years

    ● Four-level interlocking fire management strategy, capable of providing timely warnings

    Highly Flexible

    ● Compatible with 2/3/4-hour systems; Support single/dual circuits

    ● Compatible with a variety of PCS models

    Long Cycle Life

    ● Cell· Extend cell cycle life by using low-impedance and impedance-slowly-growing technologies

    ● Pack· Optimize liquid-cooling architecture to improve simulated cycle life by 8%

    ● System· High-efficiency liquid-cooling temperature control technology maintains the temperature range ≤3°C; Reduce auxiliary power losses by up to 20%

    High Capacity

    ● 20-foot standard container, with a 25% increase in power density

    ● 20% reduction in land area

    High Performance

    ● System utilization rate is over 99.5%, and overall efficiency is above 88%

    ● Built-in PCS module, fully utilizing the battery capacity, AC output

    Long Cycle Life

    ● Eliminating parallel capacity loss can increase electricity consumption by 4%
    ● Reducing inter-cluster circulation can enhance cell service life

    High Integration

    Compared with the DC container, the land area occupied by the AC side can be decreased by 38% with the higher level of integration

    Easy Operation

    ● Each cluster is independently managed, enabling independent charging and discharging for each cluster

    ● Modular design allows for easy replacement of failed modules

  • Phevast

    |  Data sheet

    Basic Parameter
     Cell Capacity [Ah] 314

    Dimensions [L*H*W][mm]

    		 6058*2438*2896
    Pack Type 1P104S*48
    Rated Voltage [V] 1331.2
    Rated Capacity [MWh] 5.015
    IP Level IP55
    Container Weight [t] 39

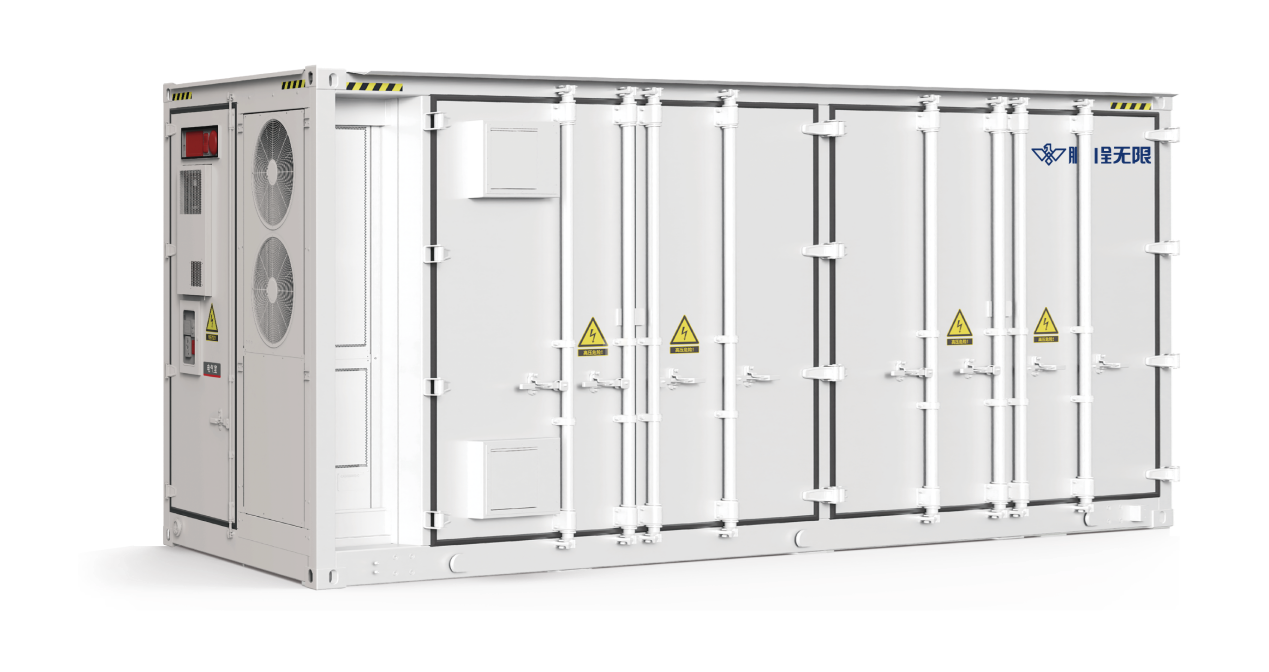

    Phevast D+ 5MWh

    Liquid-cooled energy storage container

    Phevast Powerlink 5MWh

    Liquid-Cooled Energy Storage Container - AC/DC Integrated

    >

    |  Data sheet

    Basic Parameter
     Cell Capacity [Ah] 314

    Dimensions [L*H*W][mm]

    		 6058*2438*2896
    Pack Type 1P104S*48
    Rated direct current voltage [V/dc] 1331.2
    Rated Capacity [MWh] 5.015
    Rated Output Voltage [V/ac] 690
    IP Level IP55
    Container Weight [t] 41

    High Safety

    ● Operates normally in harsh environments, with a high corrosion resistance level (C5) and a high IP level (IP55)
    ● Maintain the rated power even in high-altitude environments (4000 meters above sea level)
    ● Four-level interlocking fire management strategy, capable of providing timely warnings

    Diversity

    ● Support centralized/string type solutions.
    ● Support multiple types of PCS including 1250/2500/215kW
    ● Support various application scenarios such as 2/3/4 hours ESS projects

    Long Cycle Life

    ● Adaptive expansion force design IP67 pack design
    ● Integrated variable-frequency liquid cooling system:Temperature difference between cells within the cluster is less than 3℃
    ● Cycle life can reach 15 years @ 70%

    High Integration

    ● The CTP upgrade technology significantly increases the energy density
    ● A standard 20-foot container, compared with the previous generation product, reduces the land area by 7%
    ● 2.5MW/5MWh solution, with zero over-provisioning for the entire station

    High Performance

    ● System utilization rate is over 99.5%, and overall efficiency is above 88%
    ● Built-in PCS module, fully utilizing the battery capacity, AC output

    Long Cycle Life

    ● Eliminating parallel capacity loss can increase electricity consumption by 4%
    ● Reducing inter-cluster circulation can enhance cell service life

    High Integration

    Compared with the DC container, the land area occupied by the AC side can be decreased by 38% with the higher level of integration

    Easy Operation

    ● Each cluster is independently managed, enabling independent charging and discharging for each cluster

    ● Modular design allows for easy replacement of failed modules

Grid‑Scale Liquid Cooled ESS

· 6.25MWh / 5MWh

· Peak Shaving

· Primary Frequency Regulation
